Missing APID
We found some missing TM during last operations:
Missing MEA1 APID 0528 on 2021-08-08 : 0/ 21 ( 0.00%)
Missing MEA1 APID 0528 on 2021-08-09 : 176/2592 ( 6.79%)
Missing MEA1 APID 0528 on 2021-08-10 : 422/2480 ( 17.02%)
Missing MEA1 APID 0528 on 2021-08-11 : 120/1182 ( 10.15%)
Missing MEA2 APID 0530 on 2021-08-08 : 0/ 17 ( 0.00%)
Missing MEA2 APID 0530 on 2021-08-09 : 205/2461 ( 8.33%)
Missing MEA2 APID 0530 on 2021-08-10 : 294/2347 ( 12.53%)
Missing MEA2 APID 0530 on 2021-08-11 : 97/1125 ( 8.62%)
Missing MSA APID 0540 on 2021-08-08 : -66/ 147 (-44.90%) Wrong results => reset seq_cnt
Missing MSA APID 0540 on 2021-08-09 : 156/3457 ( 4.51%)
Missing MSA APID 0540 on 2021-08-10 : 276/2852 ( 9.68%)
Missing MSA APID 0540 on 2021-08-11 : 126/1669 ( 7.55%)
Missing MEA science TM packets (APID 0x528)
-

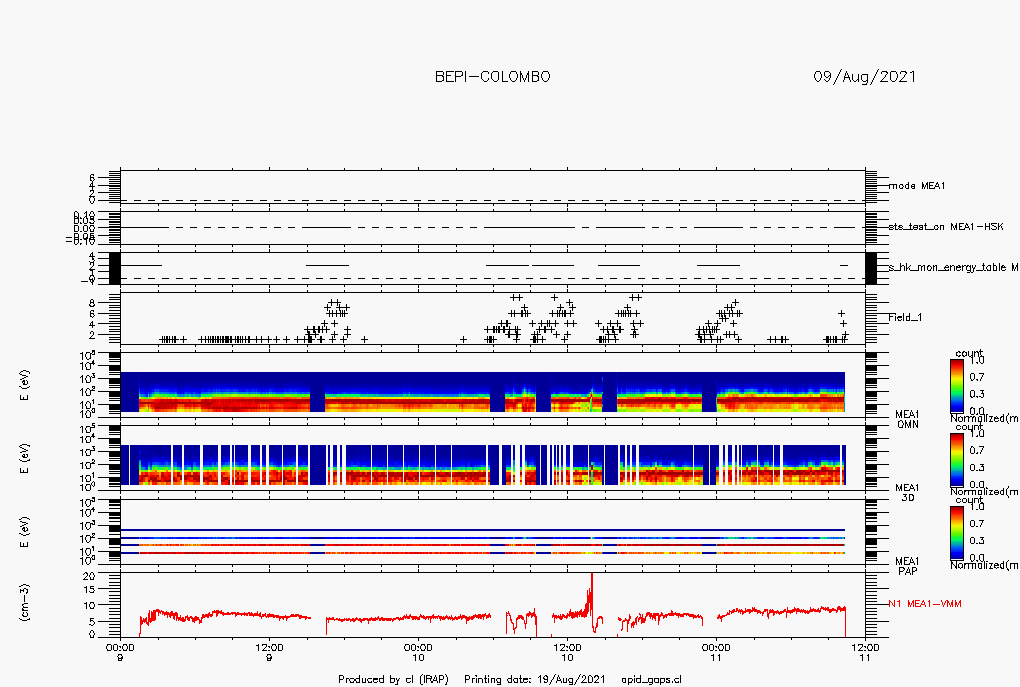

Following plot shows (Field_1 pannel) the data gaps locations and the number of packets missing.
-
Data gaps are more frequent and longer in TLM mode 10 (4 Kbits/s with User HK) than in TLM mode 5 (7 Kbits/s without user-HK)
MEA1

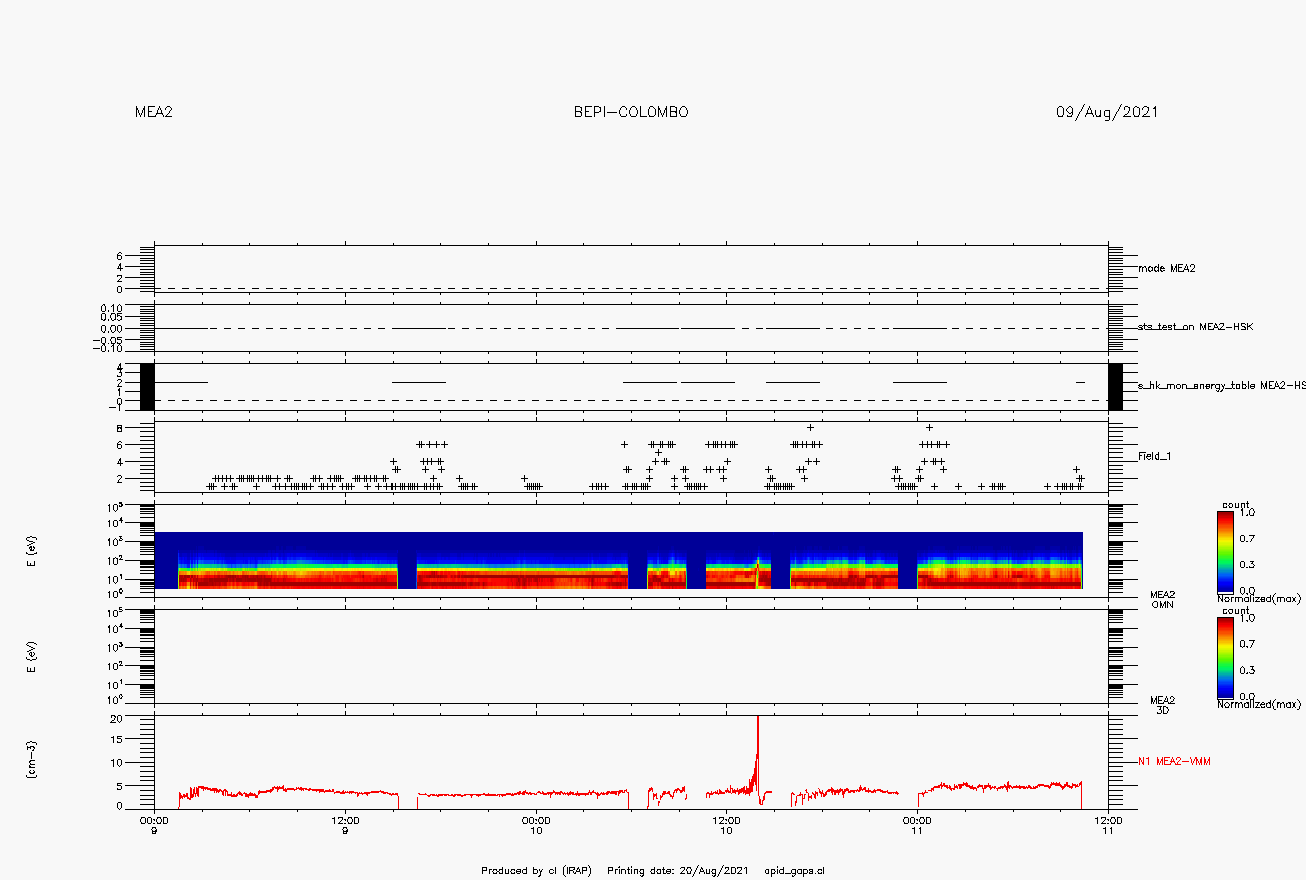

MEA2

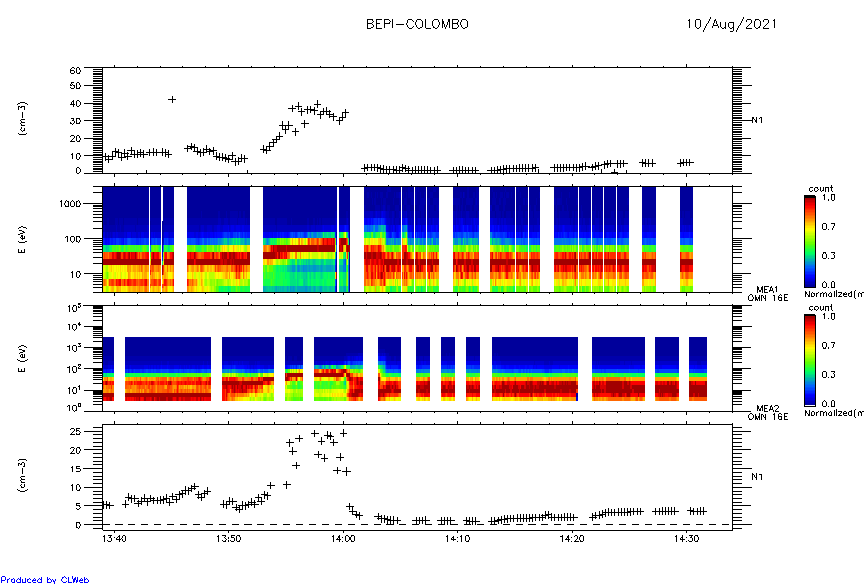

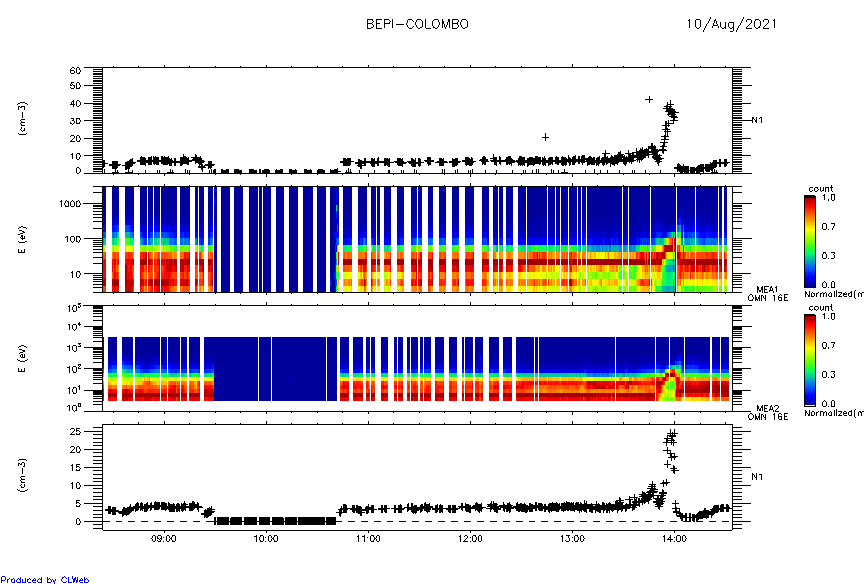

Very first plots
Mail Go Murakami
Dear all,
Today we will start our 2nd Venus flyby operations.
Here are the summary of related information.
Attached zip file (same as the one I sent on 20 July)
Sun 08-08-21 MLG 17:30 23:56 #MSA interactive operations
Mon 09-08-21 CEB 9:16 19:58
MLG 22:00 23:57 (No participants from JAXA)
Tue 10-08-21 NNO 1:30 3:00 (No participants from JAXA)
CEB 9:17 17:00
MLG 13:57 23:58
Wed 11-08-21 NNO 6:30 11:39
All activities (except for MSA power cycle on 8 August) will be performed by MPO mission timeline.
We don't request to monitor/check the telemetry data in real time, but anyway we will use the following Zoom link during the passes between 8-11 Autust.
If you have any news or points to be discussed with JAXA system members, please join it.
https://zoom.us/j/8649454015?pwd=cW1TUDlWa0RLVXR1RXRPTzFpYTNUZz09
Meeting ID: 864 945 4015
Pass: mio
JAXA plans to publish a web article for public/media within 2 weeks after Venus flyby.
Any quick results which can be open are highly appreciated.
I hope successful Venus flyby and looking forward to seeing interesting data!
Fingers crossed!!
Best regards,
Go
~~~
