This documents shows the comparisons of MEA1 and MEA2 energy-tables memory dumps with values described in MEA1 and MEA2 HV tables
We could compare, for each instrument, memory dumps of onboard HV tables with coefficients given in XLS file.
The four available HV tables are:
-
T0 : HV table 3-300eV_FM
-
T1 : HV table 3-25KeV_FM
-
T2 : HV table 3-3KeV_FM
-
T3 : HV table 3K-25KeV_FM
2018-11-24 MEA Memory Dump
Next images shows the comparison between:
-
column left: Ascii dump of TM packet for APID 0x718 (DPU1) for node = 05 (MEA1) or 06 (MEA2)
-
column right: Corresponding Ascii dump of the expected HV table (T0 .. T3)
On the left column, you could find timetag and sequence number of each memory dump.
2018-11-24 Memory dump Ascii files
MEA1 memory dump check

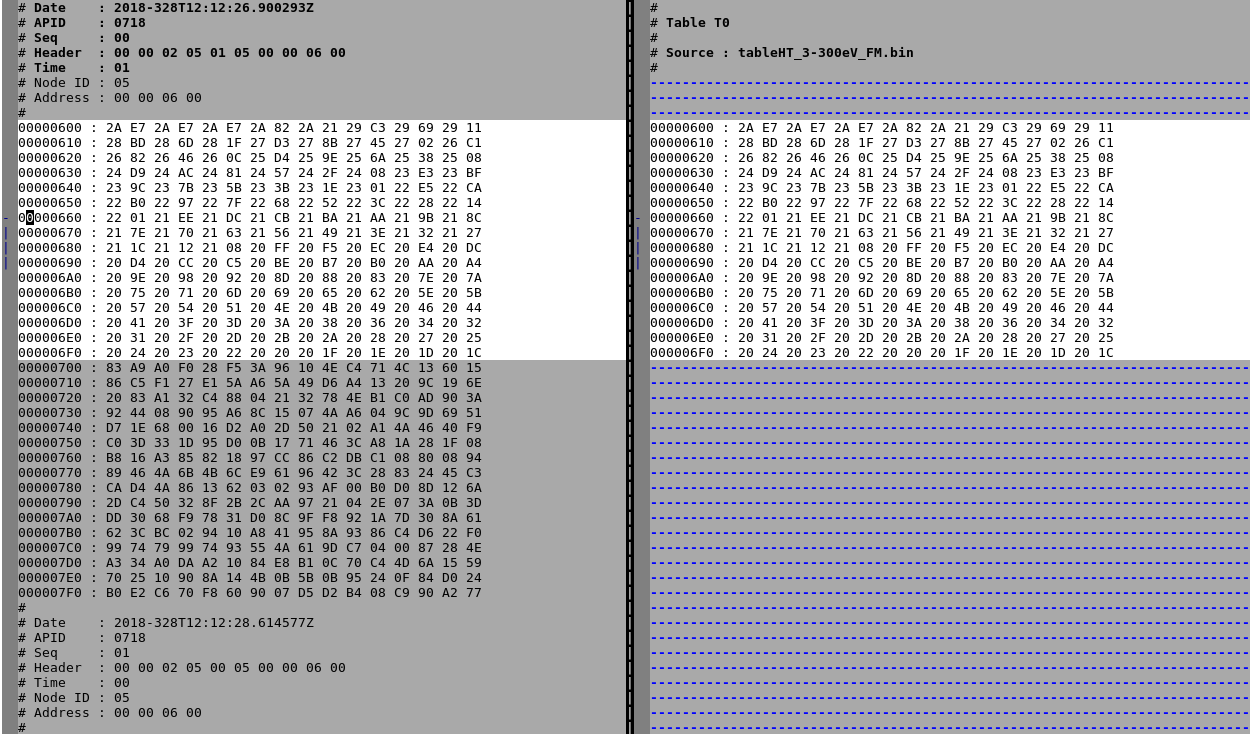

Table 0
Table 1
Table 2

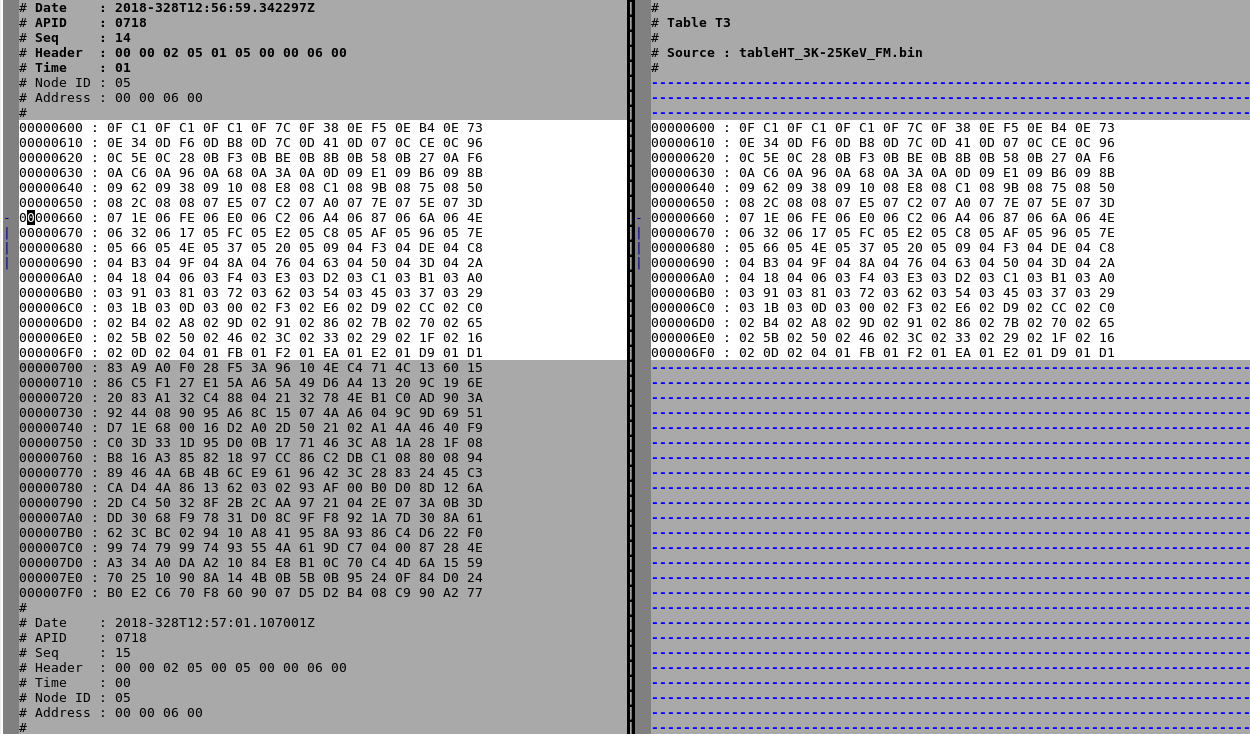

Table 3
MEA2 memory dump check
Table 0
Table 1
Table 2
Table 3
